Intelligent 5 Chutes Wheat Color Sorter Cereal Grain Sorting Machine With Screenshot Function

1. Working principle of color sorter:
Raw Material are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate.Under the effect of light source, CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

2. Technical Parameters:

3. Wenyao Color Sorter Machine Features:

1. It adopts high quality special industrial lenses;

2. Self checking system,5400 CCD camera, and photo processing technology.

3. High speed FPGA technology signal processor with fast detection and high identification rate.

4. Overall unit adopts intelligent closed-loop control.

5. High speed air value is used to ensure quick response, low power consumption and long service life.

6. It uses intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.

7. Failure alarm automation and modular construction makes easy repair.

8. Combining LED lighting systems with fixed backgrounds and low voltage vibrator, auto-adjusts varying light levels, minimizing vibrations and producing consistent throughput across the chute.

4.Product application:

Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and fruits:
Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp Significance of color sorting machine: Compared with manual selection, labor-saving, time-saving, high efficiency, low processing cost.Improve the quality and economic and social benefits of selected products

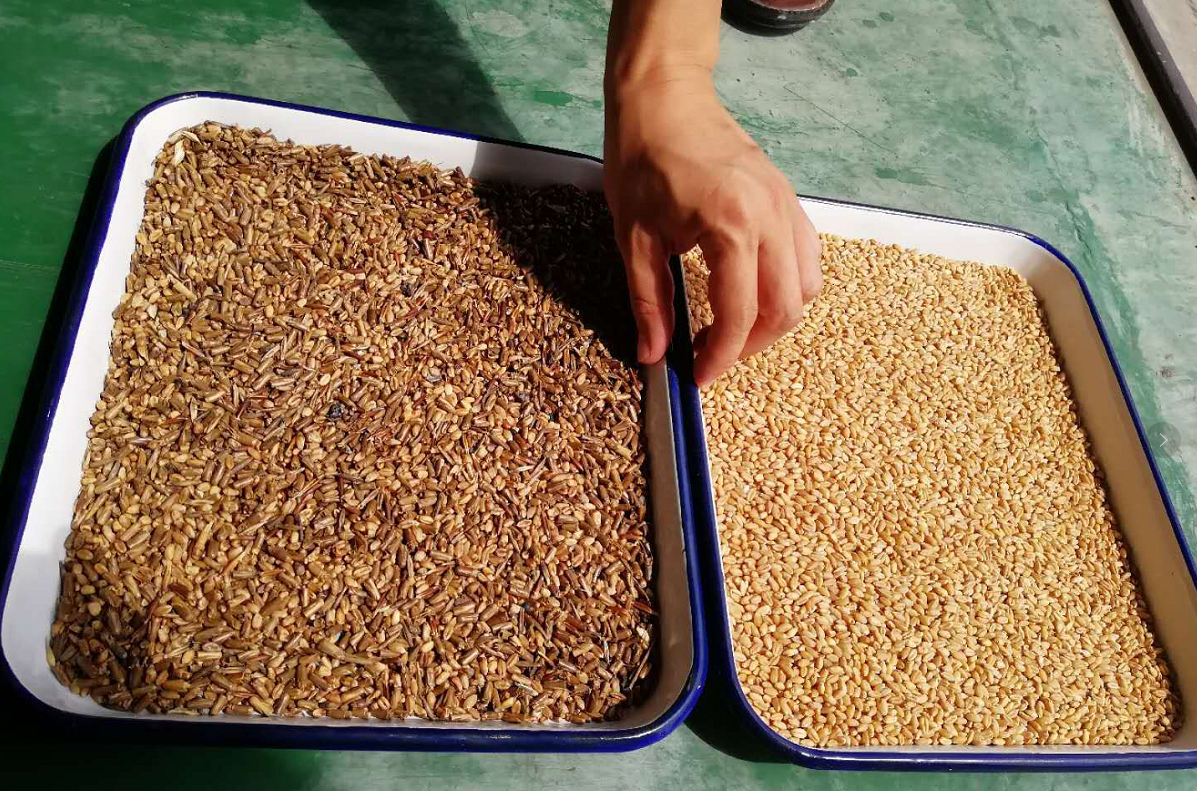

5. Color Sorting effects of cereal:

6. color sorting examples of other materials:

7. Why choose wenyao?

(1) The most hygienic optical sorters, lowering the risk of contamination

(2) Unprecedented defect and foreign material detection

(3) Industry leading optical sorting technologies

8. Our Service:

9. customer side

10.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.

11. contact us

Cereal Grain Sorting Machine

5 Chutes Wheat Sorter Machine

Screenshot Function Wheat Color Sorter

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function Images
